2 Way Indirect Acting

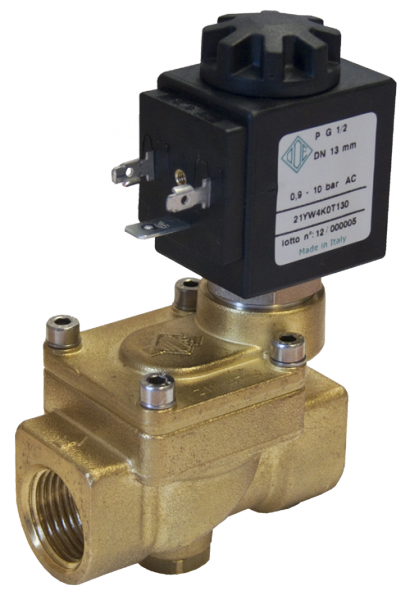

21YW-YN Series

Port connection: G 1/2, G 3/4, G 1, 1/2 NPT, 3/4 NPT, 1 NPT
Body material: Brass
Type: General Purpose Solenoid Valves
Function: 2/2 way indirect acting
Flow Kv (l/min): 50, 90, 160
Pressure M.O.P.D.: up to 10 bar
Applications: Industrial washing machines, Steam, Ironing stations
Certifications: without

21X Series

Port connection: G 1/2, G 3/4, G 1, 1/2 NPT, 3/4 NPT, 1 NPT
Body material: Brass
Function: 2/2 way indirect acting
Flow Kv (l/min): 50, 90, 160
Pressure M.O.P.D.: up to 10 bar
Applications: Industrial washing machines, Steam, Ironing stations
Certifications: without

21PW Series

Port connection: G 3/8, G 1/2
Body material: Brass
Function: 2/2 way indirect acting
Flow Kv (l/min): 32, 38
Pressure M.O.P.D.: up to 20 bar
Applications: Air, Carwash, Compressors, Fuel gases, Industrial automation, Industrial washing machines, Water, Water treatment
Certifications: without

21H-EN Series

Port connection: G 3/8, G 1/2, G 3/4, 1/4 NPT, 3/8 NPT, 1/2 NPT, 3/4 NPT, 3/8 NPT
Body material: Brass
Function: 2/2 way indirect acting
Flow Kv (l/min): 20, 25, 35, 45, 50
Pressure M.O.P.D.: up to 20 bar
Applications: Air, Carwash, Industrial automation, Industrial washing machines, Packaging, Thermoregulation, Water, Water treatment
Certifications: without

4743 Series

Port connection: Inlet flange – G 1/2 outlet
Body material: Brass
Function: 2/2 way indirect acting
Flow Kv (l/min): 40
Pressure M.O.P.D.: up to 16 bar
Applications: Carwash, Water
Certifications: without

21WA-W-WN Series

Port connection: G 3/8, G 1/2, G 3/4, G 1, G 1 1/4, G 1 1/2, G 2, 3/8 NPT, 1/2 NPT, 3/4 NPT, 1 NPT, 1 1/4 NPT, 1 1/2 NPT, 2 NPT
Body material: Brass
Function: 2/2 way indirect acting
Flow Kv (l/min): 35, 60, 70, 120, 140, 150, 190, 400, 520, 750
Pressure M.O.P.D.: up to 16 bar
Applications: Air, Carwash, Compressors, Filling machines, Fuel gases, Industrial automation, Irrigation, Packaging, Thermoregulation, Water, Water treatment
Certifications: NSF

21A-PW Series

Port connection: G 1/4
Body material: Brass
Function: 2/2 way indirect acting
Flow Kv (l/min): 9
Pressure M.O.P.D.: up to 15 bar
Applications: Air, Compressors, Fuel gases
Certifications: without

21X Ex m – Ex d series

Function: 2/2 way indirect acting, N.C.
Port connection: G 1/2, G 3/4, G 1
Body material: Stainless Steel AISI 316 series
Flow Kv (l/min): 35, 130, 160
Applications: Chemical, Steam, Water, Water treatment, Chemical/Petrochemical
Certifications: Atex

21WA-W-WN Ex d, Ex m series

Function: 2/2 way indirect acting, N.C., N.O.
Port connection: G 3/8, G 1/2, G 3/4, G 1, G 1 1/4, G 1 1/2, G 2, 3/8 NPT, 1/2 NPT, 3/4 NPT, 1 NPT, 1 1/4 NPT, 1 1/2 NPT, 2 NPT
Body material: Brass
Flow Kv (l/min): 60, 70, 140, 190, 400, 520, 750
Applications: Air, Chemical, Water, Water treatment, Chemical/Petrochemical
Certifications: Atex

21W-OX Series

Function: 2/2 way indirect acting, N.C.
Port connection: G 3/4, G 1, G 1 1/4, G 1 1/2, G 2
Body material: Brass
Flow Kv (l/min): 140, 190, 400, 520, 750
Applications: Air, Chemical, Food & Beverage, Fuel gases, Industrial automation, Industrial Ovens, Medical, Thermoregulation, Chemical/Petrochemical
Certifications: without
